Introduction of CCM mould assembly in steelmaking

Cooling jacket of copper mould tube for steel industry is an essential part that used in any construction. It is created with a good quality of raw materials that produce reliable sources. We provide copper mould tube products based on industry norms and high standards. You might order applications according to your industrial needs. We help you to produce these products on your limited budget to access on your field.

Types of CCM mould assembly for continuous casting machine

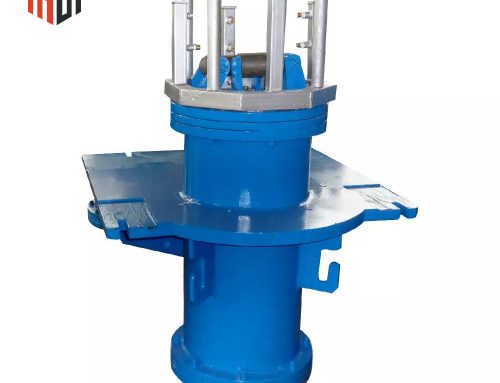

The billet and rectangular billet ccm mold assembly is mainly composed of the following parts: mold copper tube, outer water jacket, diversion water jacket, upper and lower sealing flanges, various sealing rings, foot roller device, foot roller area spray Device. The core part is the mold copper tube, and other parts are assembled around the copper tube.

The round billet ccm mold assembly is mainly composed of the following parts: mold copper tube, outer water jacket, diversion water jacket, upper and lower sealing flanges, various sealing rings, foot roller device, foot roller area spray device. Like the square billet and the rectangular billet, the core component of the round billet mold assembly is the mold copper tube, and other components are assembled around the copper tube. The key to the assembly of the round billet mold assembly is to prevent the copper tube from rotating and to ensure that the copper tube is positioned correctly along the inner and outer arc directions. The mold assembly should be subjected to a hydraulic penetration test, the test pressure is 1.2-1.5 times the working pressure, and it should be kept for 30 minutes without leakage.

The CCM mold assembly should have the following characteristics: light weight and good structural rigidity, good inertia force when vibrating, simple structure, convenient disassembly and assembly, adjustment, and easy processing and manufacturing.

Specification ofCCM mould assembly for continuous casting machine

Casting radius: R4000~R12000mm
Billet size: 60×60 – 500×500 100×240 – 300×500 φ90 – φ500
Cooling jacket: integrated or segmented stainless steel
Water gap: 4mm (it will change as per different copper mould tube design requirement)
Water pressure:>1.0MP
Seed of the cooling water:10-12m~16m/S

Production Process of Copper mold tube for continuous casting machine

MELTING & CASTING — HOT EXTRUSION/FORGING — COLD DRAWING — TAPERING — MACHINING — ELECTROPLATING — MACHINING AFTER ELECTROPLATING — FINAL INSPECTION — PACKING

Package for mould assembly for continuous casting machine

Wooden box or according to cutomer’s request
